insperplot

insperplot extends ggplot2 with Insper’s visual identity, providing custom themes, color palettes, and specialized plotting functions for academic and institutional use. Insper is a non-profit institution dedicated to teaching and research.

Installation

Install the latest release from the Insper Cidades r-universe, which ships pre-built binaries for Windows, macOS, and Linux.

install.packages(
  "insperplot",
  repos = c(
    "https://inspercidades.r-universe.dev",
    "https://cloud.r-project.org"
  )
)

Alternatively, install the development version directly from GitHub.

# install.packages("remotes")
remotes::install_github("inspercidades/insperplot")

Quick Start

insperplot is built upon Insper’s brand colors.

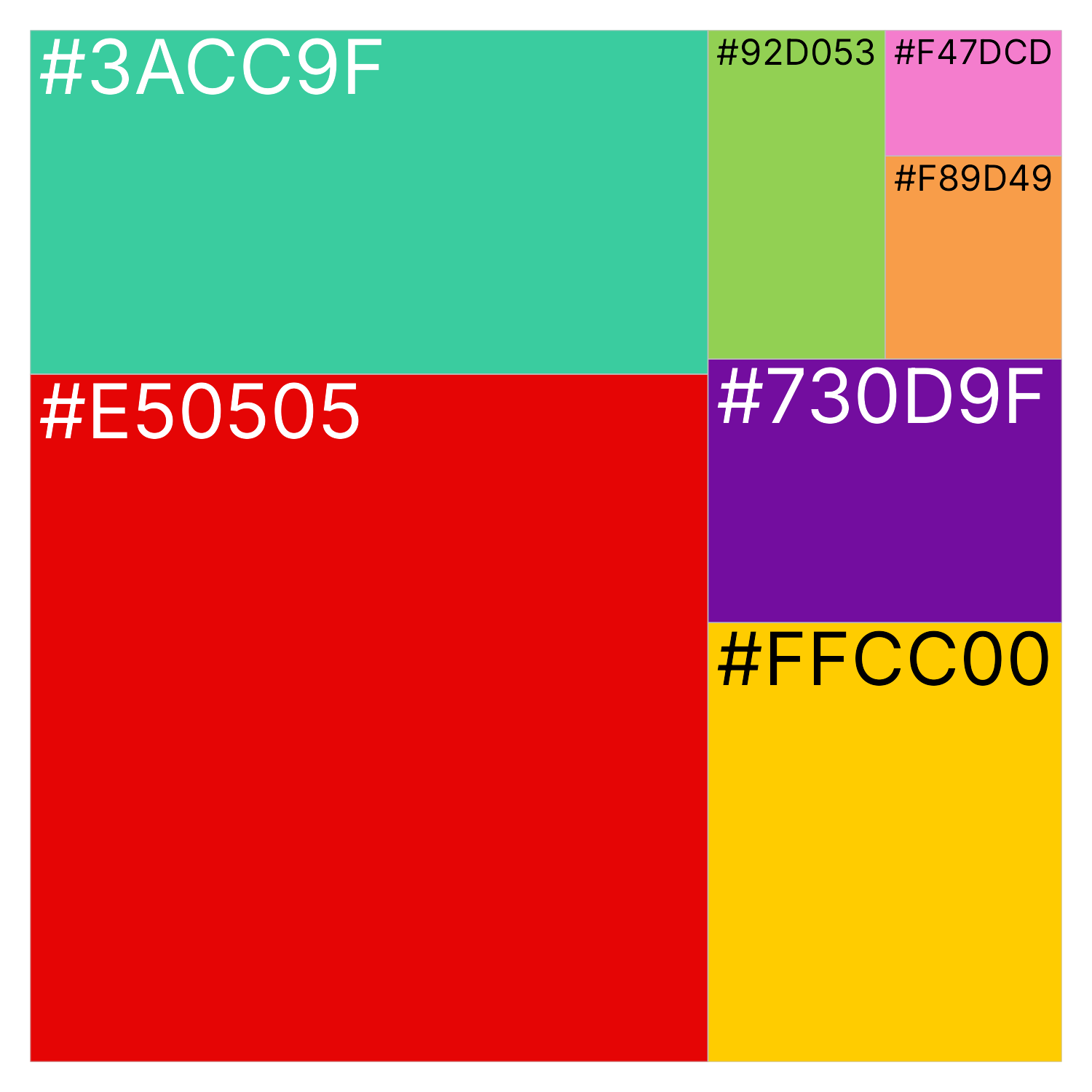

Treemap of the Insper brand palette, each rectangle filled with one brand color and labelled with its name.

To use insperplot we recommend using ggplot2. The basic functions of the package are theme_insper() and the scale_*_insper_*() functions.

library(insperplot)
library(ggplot2)
library(ragg)

# Create a basic plot with Insper theme
ggplot(mtcars, aes(x = wt, y = mpg, fill = factor(cyl))) +
  geom_point(color = "#ffffff", size = 4, shape = 21, alpha = 0.9) +
  scale_fill_insper_d(name = NULL) +
  theme_insper() +
  labs(
    title = "Fuel Efficiency vs Weight",
    subtitle = "Motor Trend Car Road Tests",
    x = "Weight (1000 lbs)",
    y = "Miles per Gallon"
  )

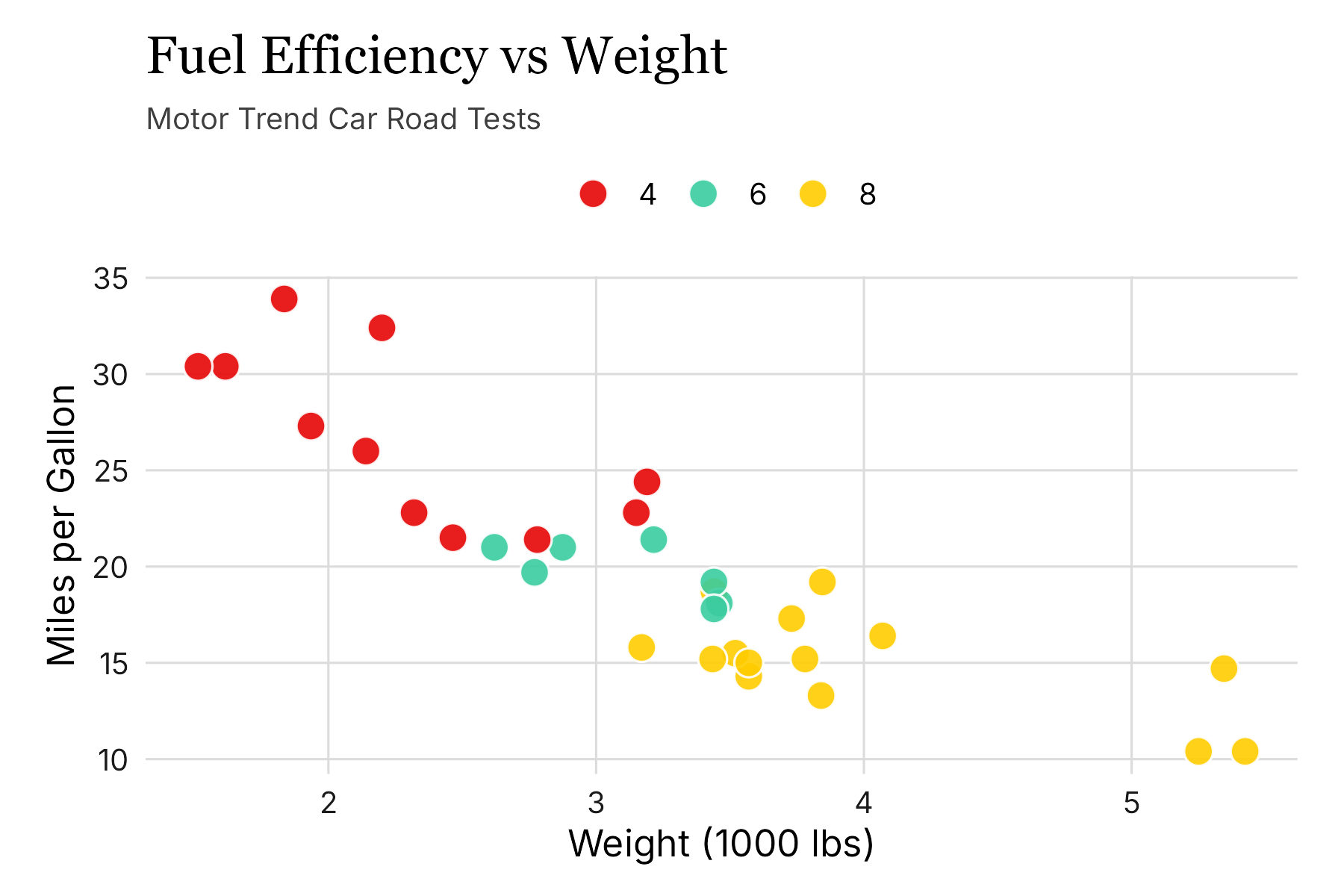

Scatter plot of fuel efficiency against car weight, points filled by cylinder count using Insper brand colors and styled with theme_insper().

To see all palettes, use show_insper_palettes(). To see a particular palette, use insper_palette().

# View the core Insper brand colors (prints a color swatch)
insper_palette("main")

Fonts and Rendering

insperplot bundles the Inter font family (licensed under the SIL Open Font License), the only free font in Insper’s 2026 brand kit. It is registered automatically when the package is loaded — no manual download or setup required.

The default title font is Georgia, a system serif font pre-installed on most operating systems and the documented substitute for Insper’s primary GT Ultra. If Georgia is unavailable, the theme falls back to the system serif family.

For the best rendering quality, install the ragg graphics device.

If you use RStudio, set the graphics backend to AGG: Tools > Global Options > General > Graphics > Backend > AGG. Positron users can skip this step since it uses ragg by default.

Documentation

For detailed documentation and examples, visit the package website.
